Creating Hypertufa Troughs at the Garden

One of my signature projects at the Chicago Botanic Garden is designing and building the hypertufa troughs for the Heritage Garden spring display. While our greenhouse staff spends their winters growing the unique and beautiful plants that we feature in the troughs, another team is hard at work making the troughs.

Hypertufa is a simulated stone container that is durable in all weather conditions, but lighter-weight than solid stone or concrete. Our trough style, which is rectangular with a distressed finish, is designed to look like vintage livestock feeders that you might imagine aging for generations in the English countryside.

Making troughs is a heavy and dusty job, but the result is a unique and lasting piece of garden artistry.

Hypertufa Trough

Here is how we make them at the Garden:

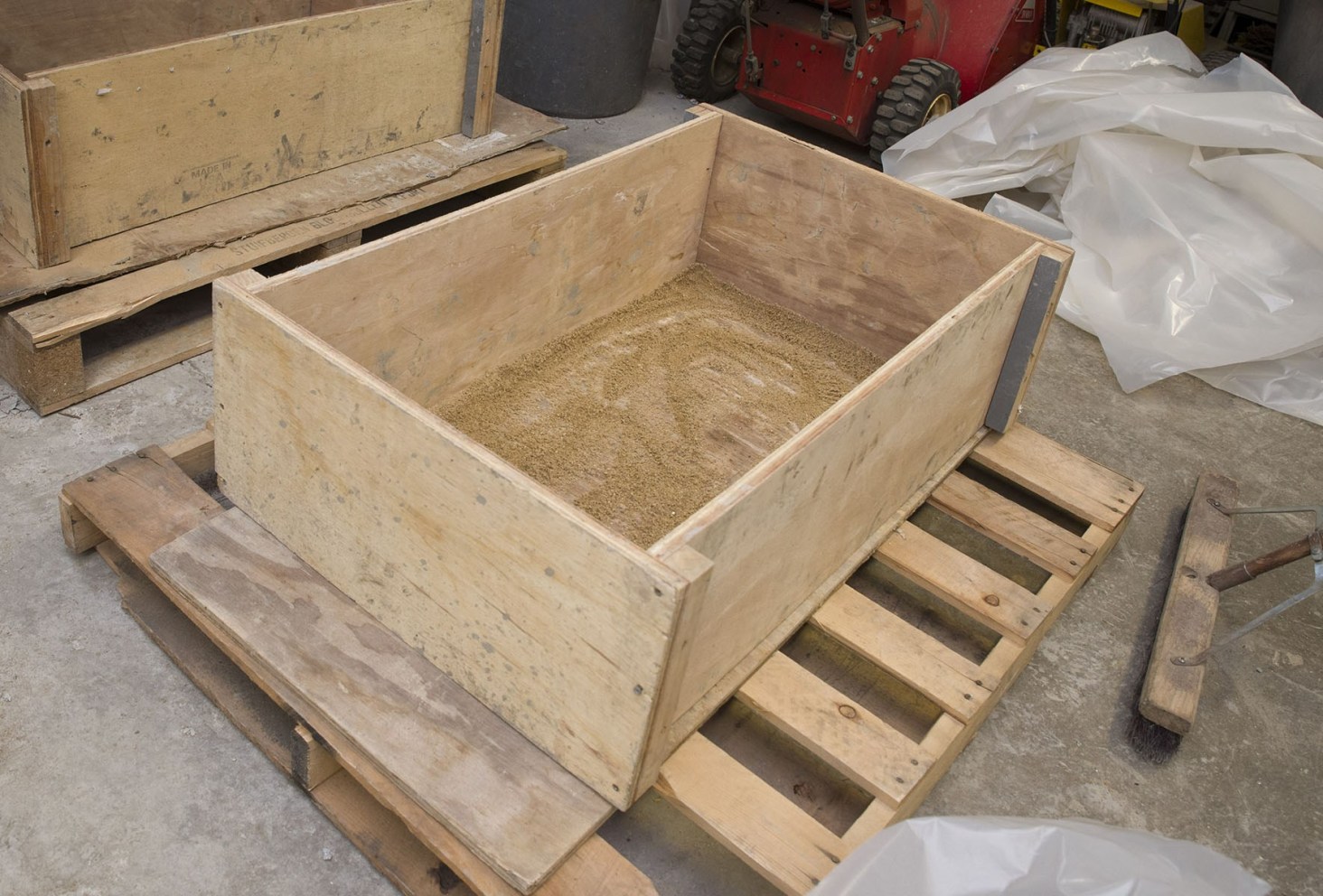

STEP 1

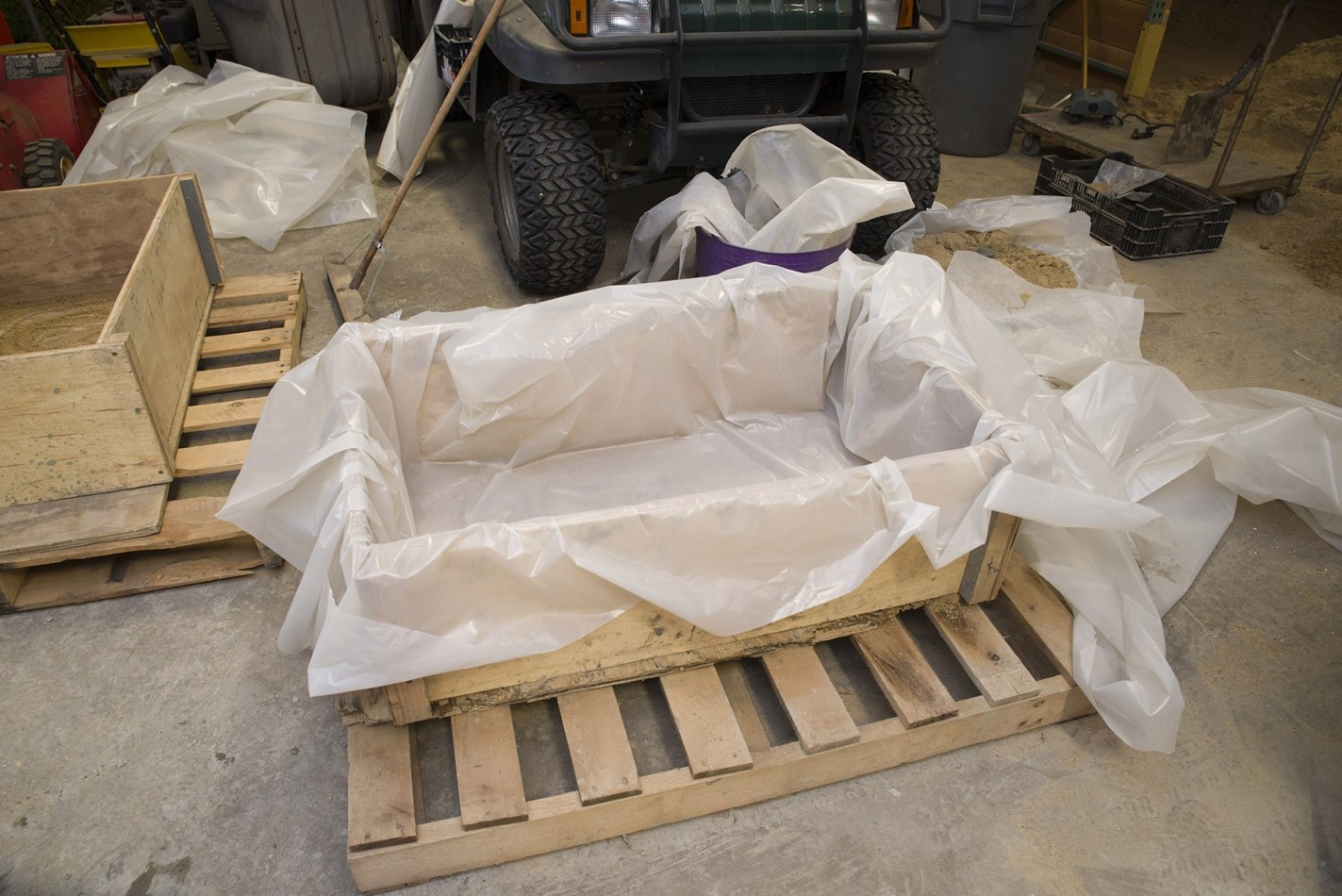

Create a wooden frame with an open top and bottom. We build it so we can easily take it apart in Step 6. Line the interior of the frame with heavy-duty plastic sheeting so the concrete does not stick to the frame.

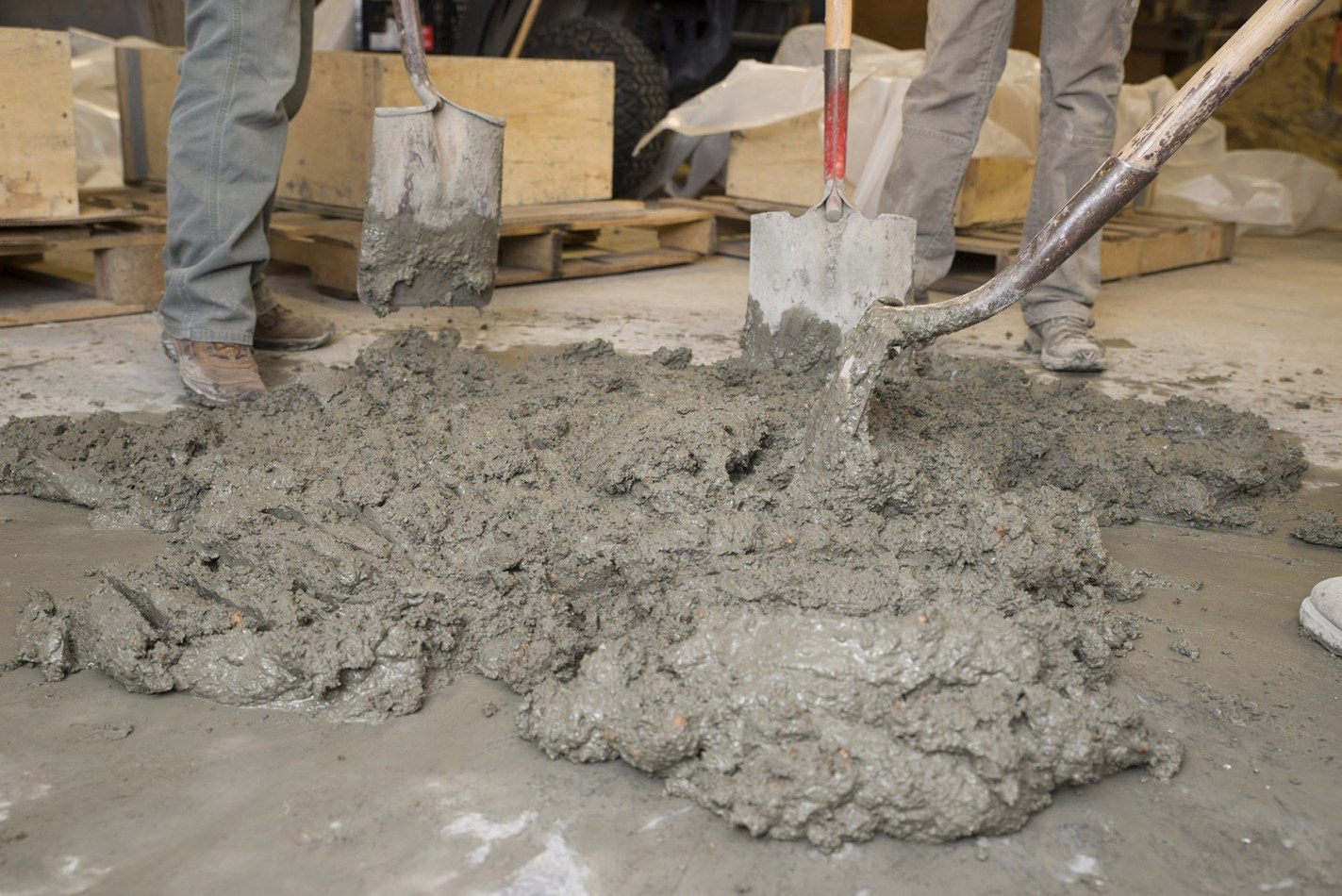

STEP 2

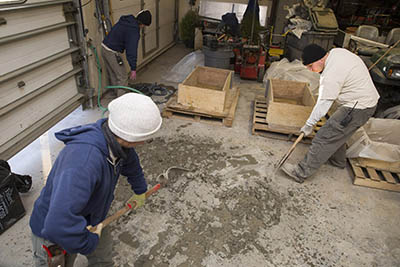

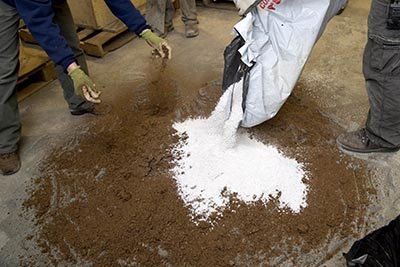

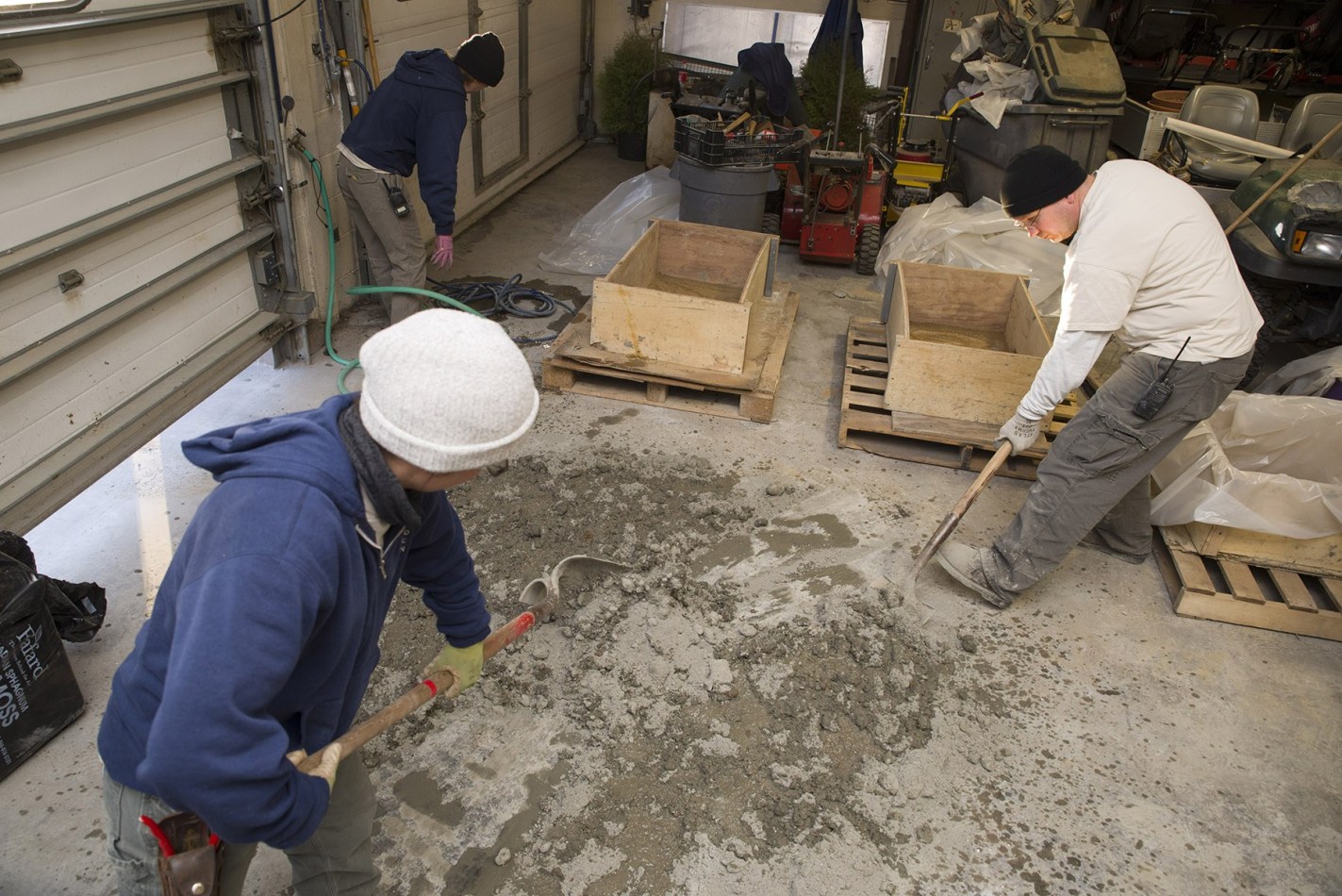

Mix 1 part Portland cement, 1/3 part peat moss, and 1/4 part coarse perlite. We add water until the wet concrete slowly falls off our shovel.

STEP 3

We pour about 2 inches of concrete into the bottom of the frame.

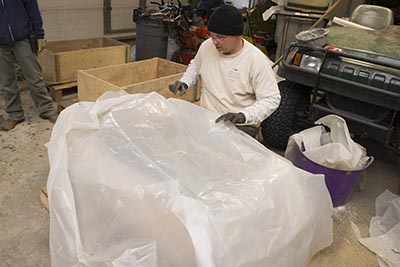

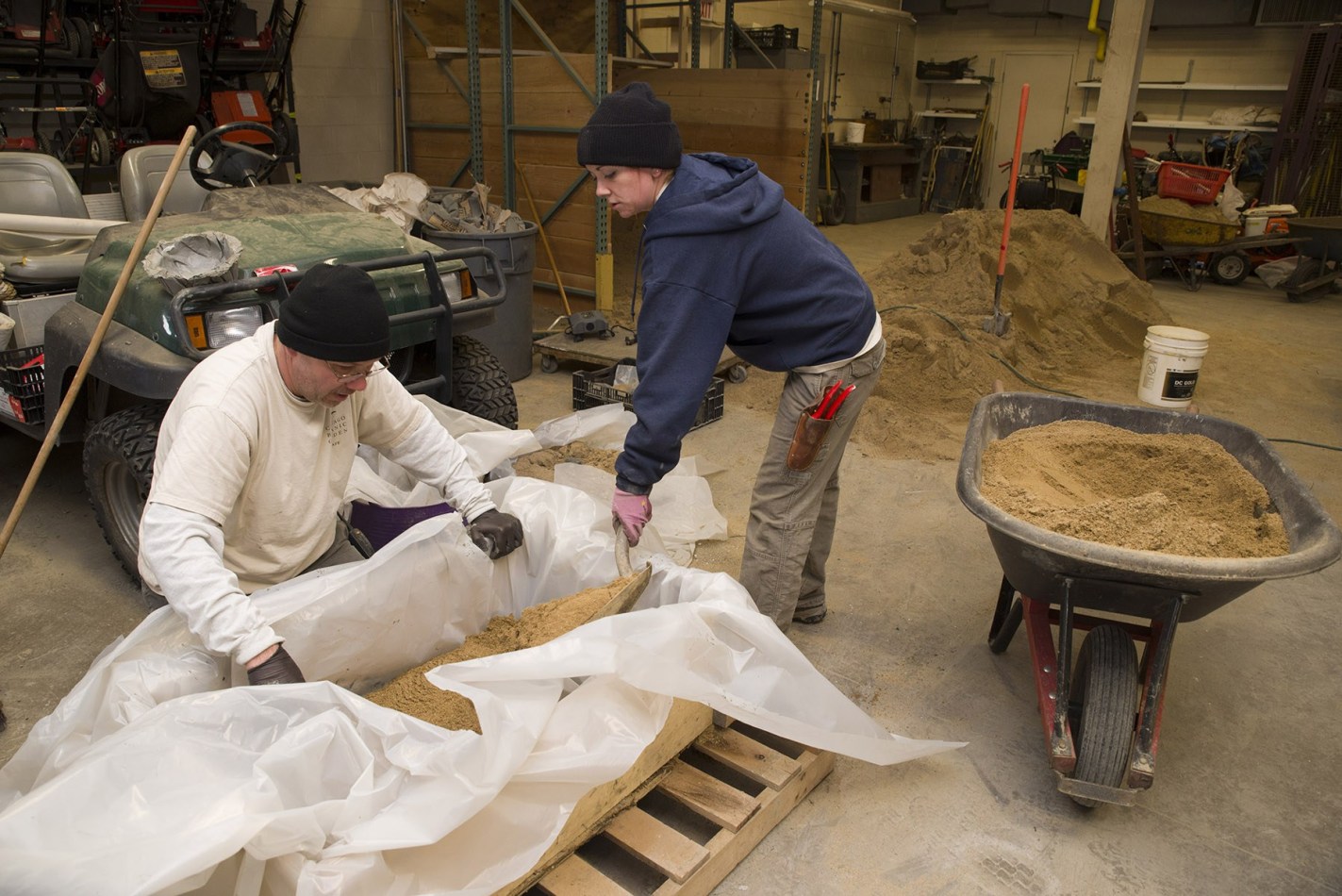

STEP 4

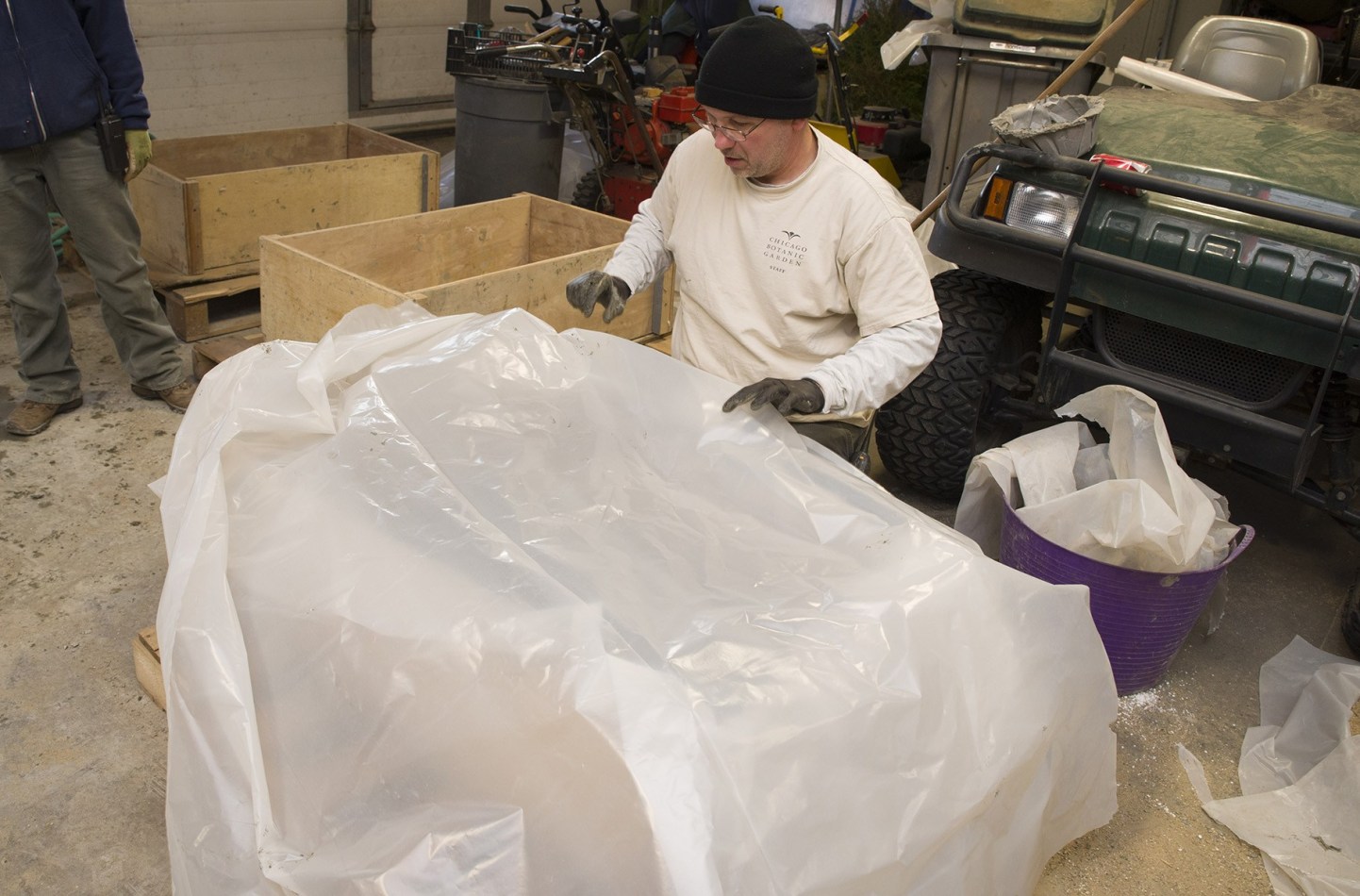

Place another large sheet of plastic on the inside of the frame. Add a 4-inch layer of sand on top of this sheet of plastic.

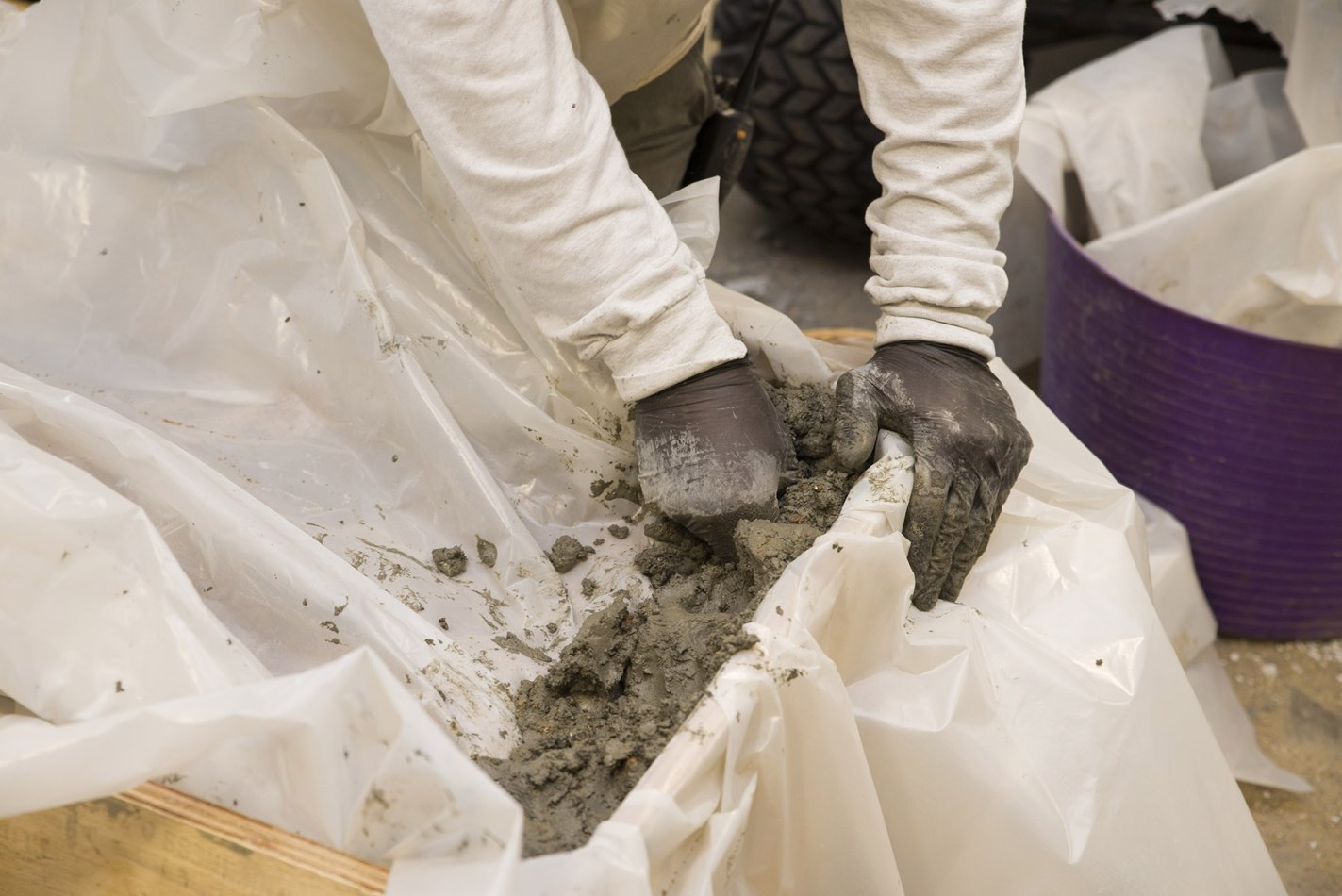

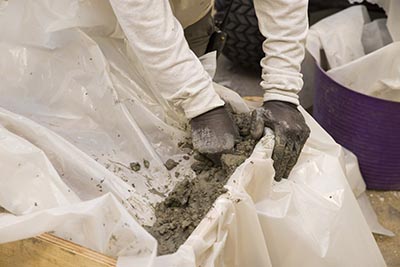

STEP 5

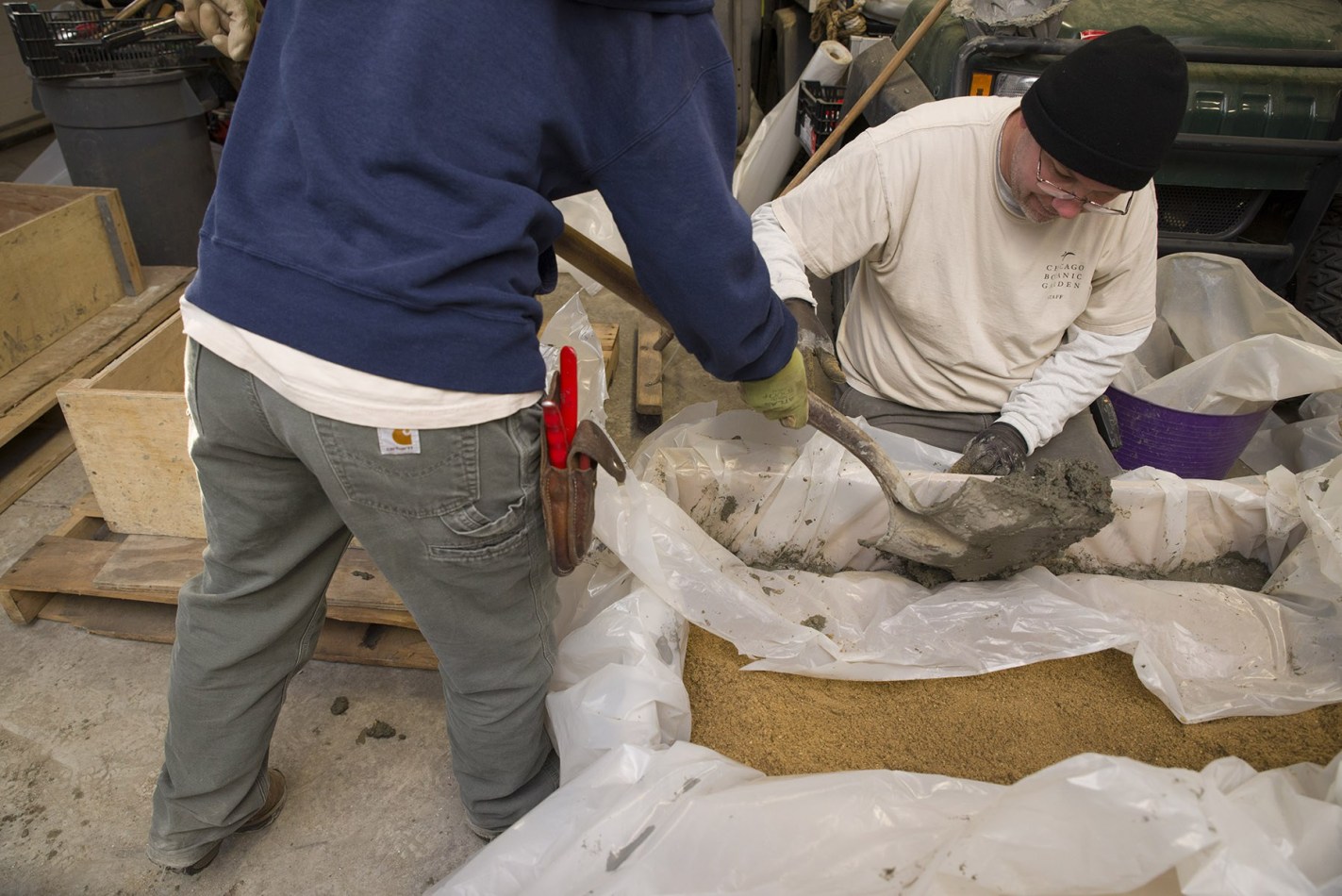

Between the two sheets of plastic, start pouring in more concrete to form the side walls. We try to make the walls about 2 inches thick, making sure they are as even as possible and have no air pockets. As the walls get taller, we keep adding sand on top of the second sheet of plastic. The sand supports the walls until the concrete hardens. Fill concrete to the top of th frame, making sure the support sand is also at the same height.

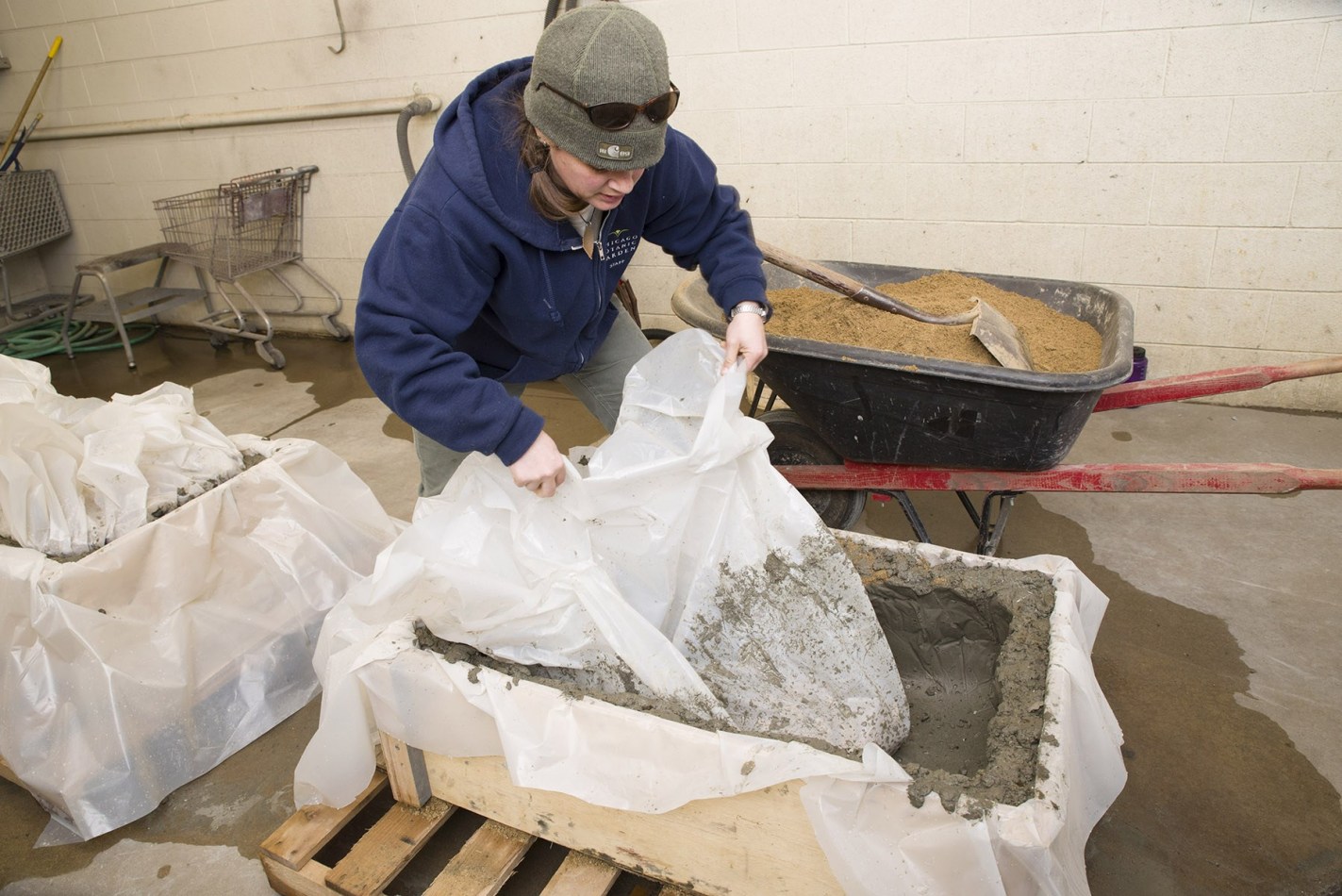

STEP 6

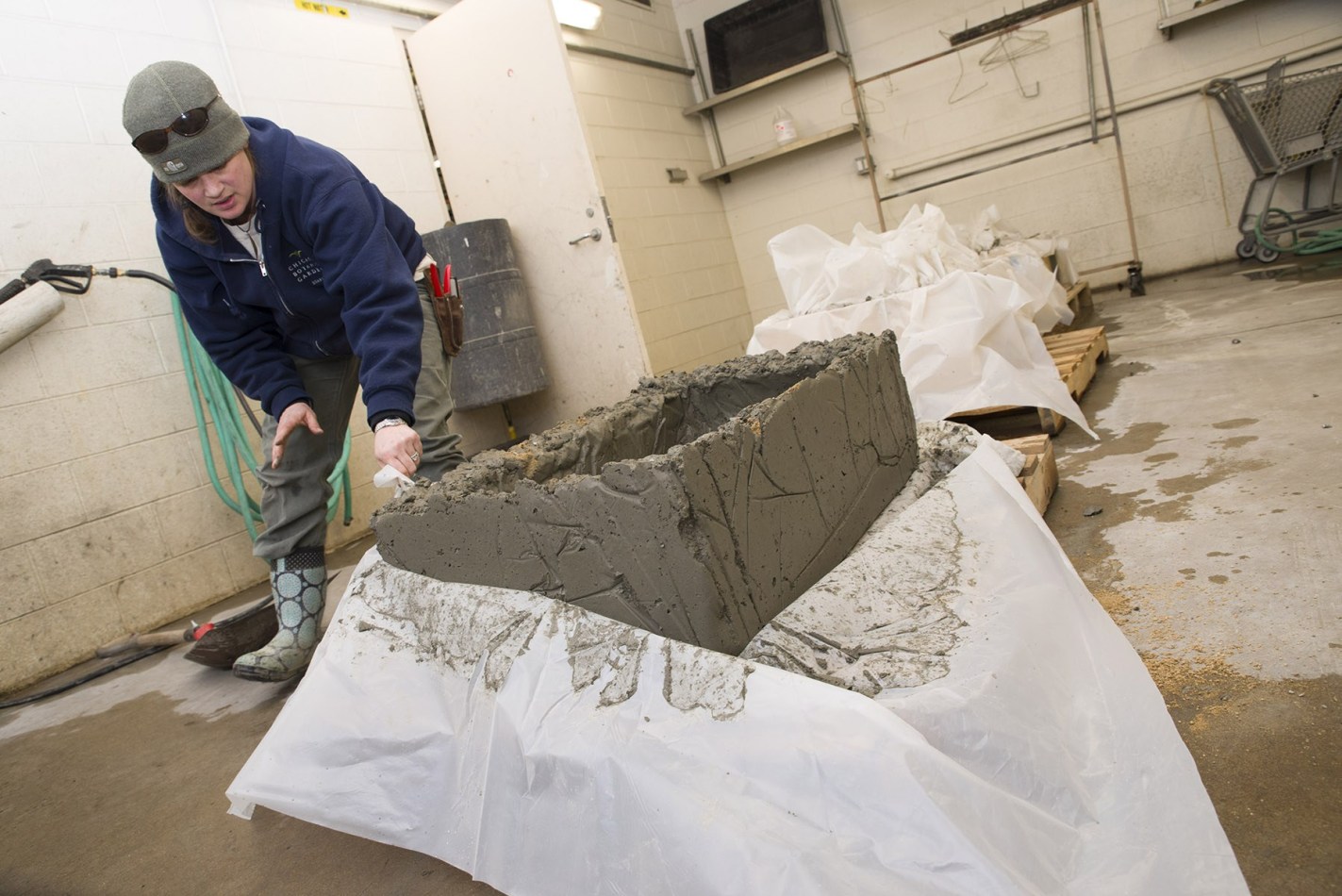

After the concrete sets but is not completely dry (6-18 hours, depending on its consistency in Step 2), we remove the wooden frame and plastic.

STEP 7

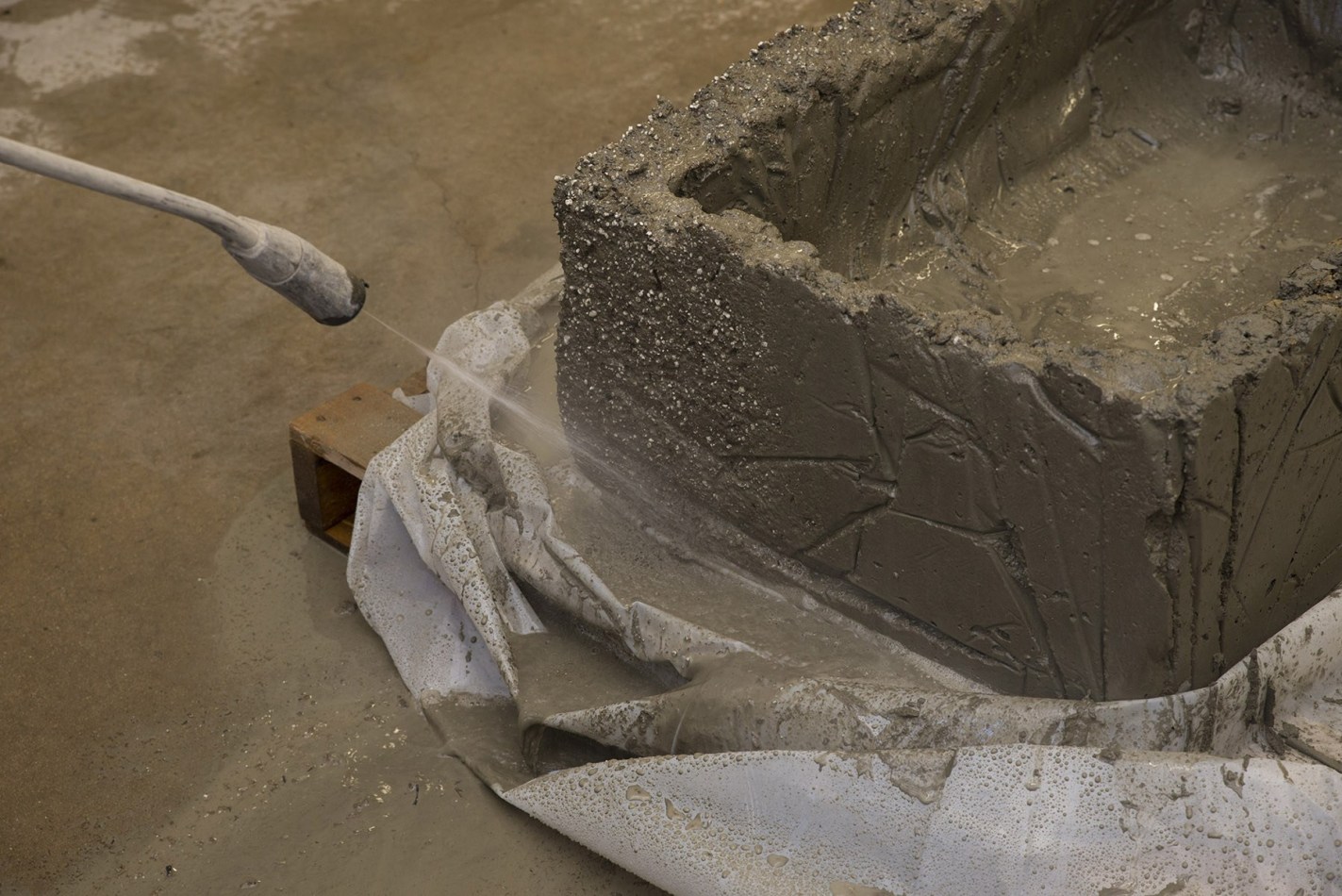

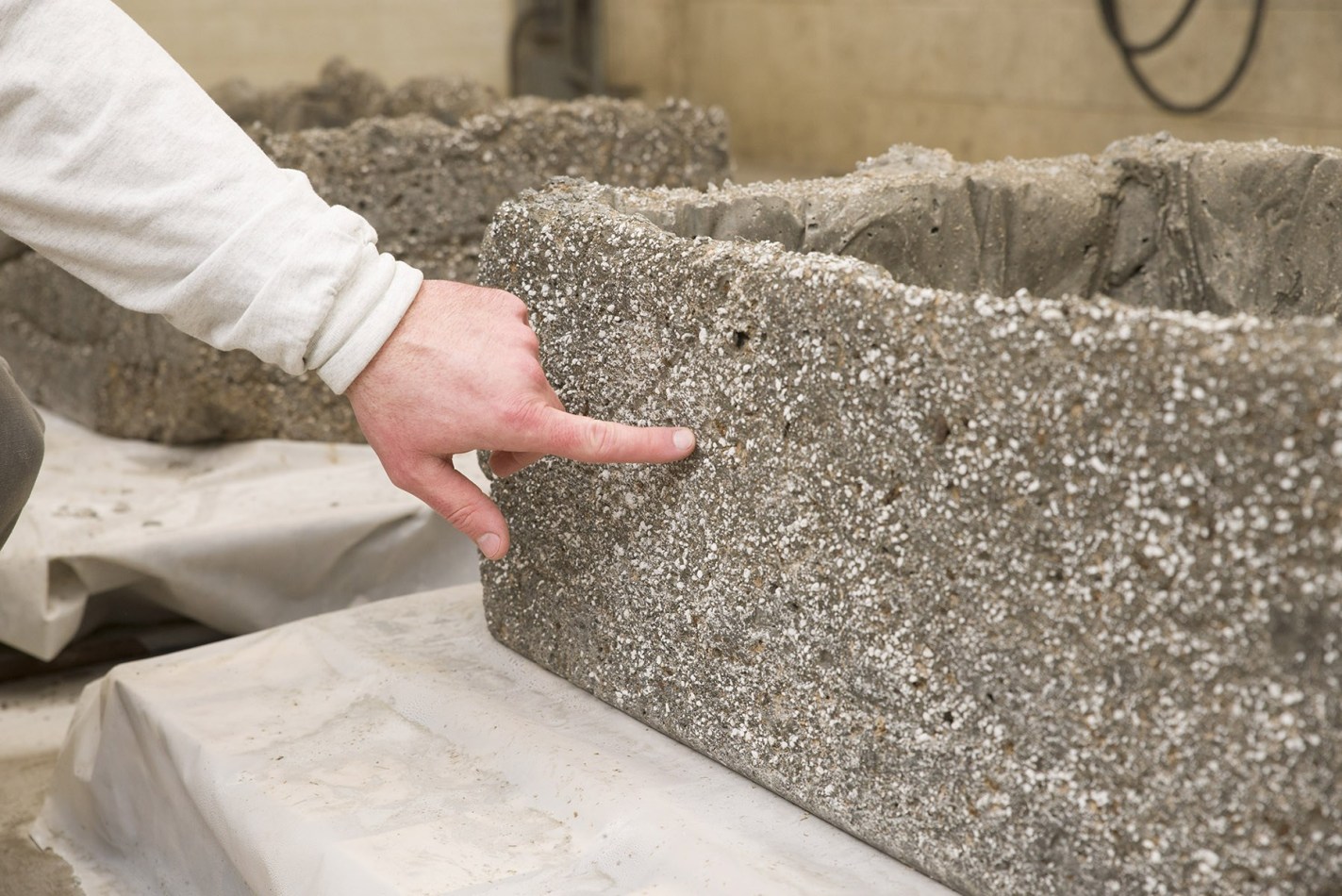

We then distress the trough to give it a weathered appearance. We use a variety of tools to do this, including hammers, chisels, and wire brushes. This year we even used a power washer. Once the trough is distressed, we drill drain holes and let the concrete completely cure for several weeks. Once cured, it is ready for our spring display!

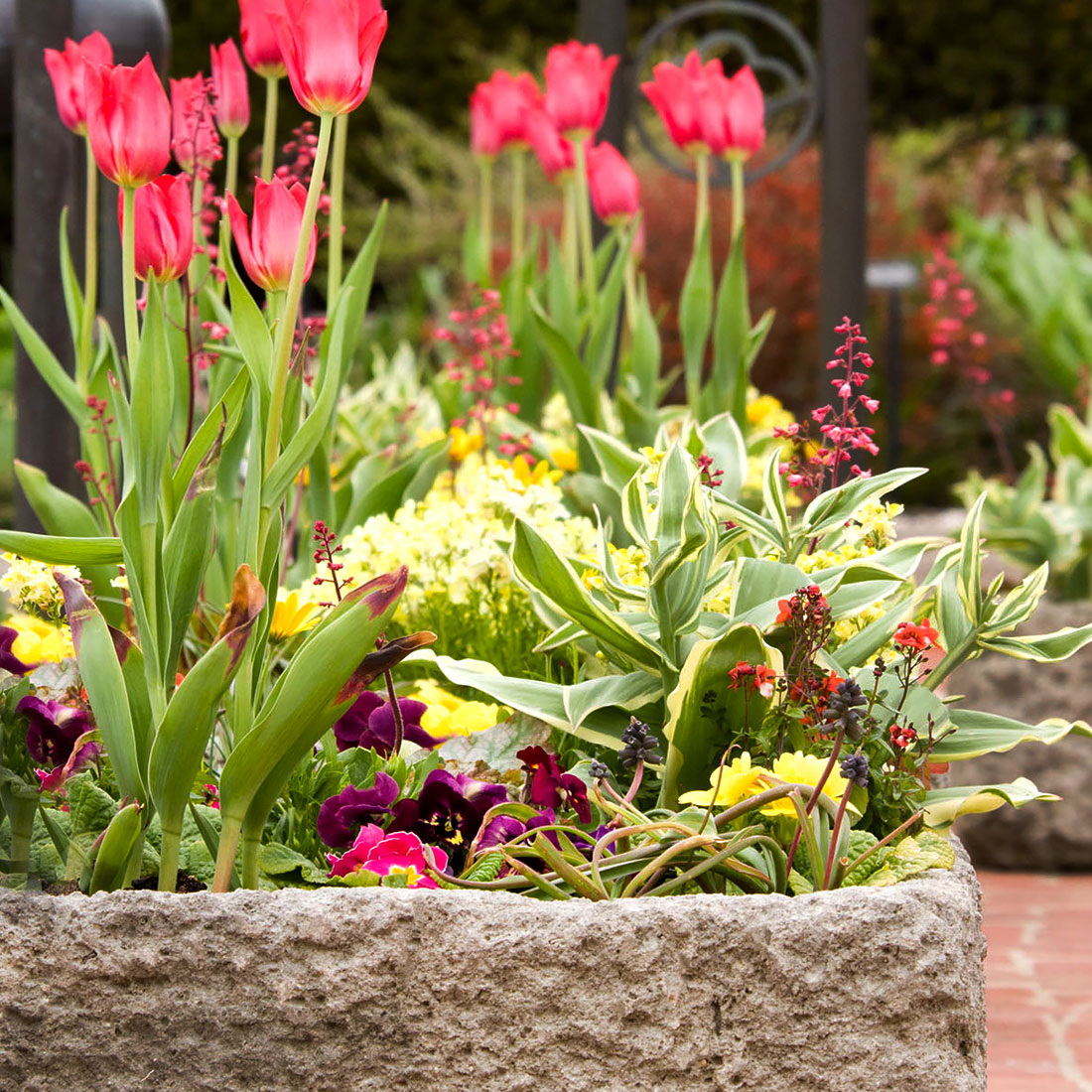

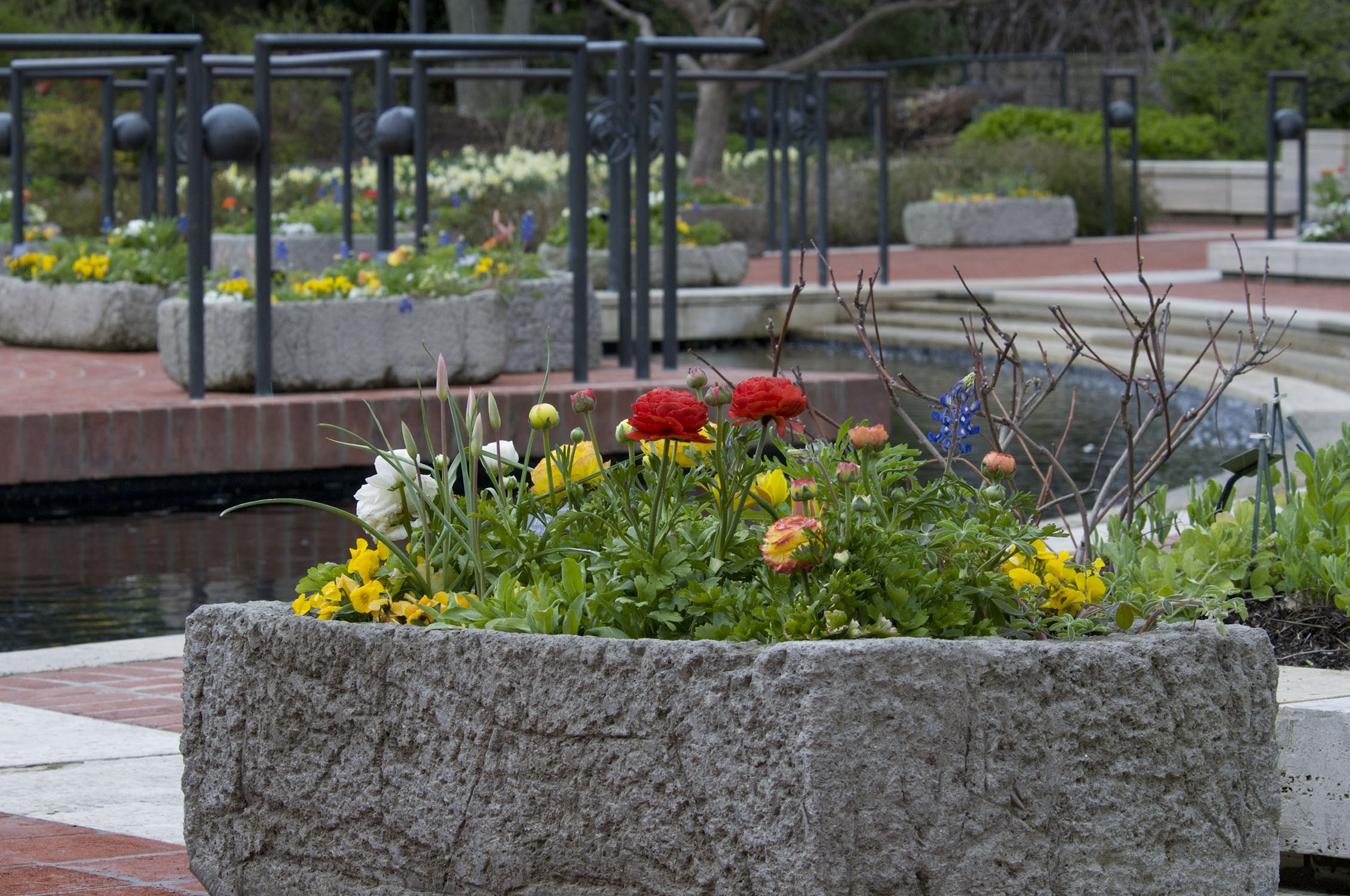

Hypertufta Trough

You can buy pre-made hypertufa containers, but this is definitely a project you can do at home for a lot less money and in a design style that is uniquely your own. Be creative. Add pebbles, shells, or beads to give your trough a little extra flair. Pigment in the mix can give it a color that better matches your décor. Adding more perlite or peat moss will make your trough lighter and give it a slightly different texture (but also makes them a little more fragile, in our experience). Leave the exterior of the trough smooth, rather than distressed, for a more formal or modern look. Lining the mold or frame with leaves (especially those with prominent veins or patterns) is another fun look for the troughs.

When we have a little bit of hypertufa mix left over at the end of our projects, we also like to make unique containers from simple molds that we find around the workshop. An upside down garbage can lid makes a nice birdbath mold. An old plastic bowl can be the perfect shape for a windowsill herb garden. I have even used an old box to make a hypertufa boot tray—who doesn’t need one of those?! Silly or serious, there is no limit to your hypertufa container options.

Author:
Tom Soulsby
Title:
Senior horticulturist
Published:
March 7, 2013
