Treatment 6: Coir Roll

Rolls of coconut husk fiber ("coir rolls") were staked in place about 2 feet off from the shoreline edge. The rolls were 12 inches in diameter, with coconut mesh webbing holding the fibers together in a roll. Wooden oak stakes were driven 1 to 2 feet into the lakebed on either side of the roll, and then rope was laced between the stakes to keep the coir roll from floating away during high-water events. Between the shoreline and coir roll, compacted planting soil was placed to create a shallow water planting area. Deep-rooted native vegetation was planted up to 5 feet upslope on the existing grades.

The coir roll material will naturally degrade over time — usually between five and ten years. During this period, the plants added along the shoreline will continue to mature, and by the time the coir completely degrades, the fully grown plants will provide an effective barrier against erosion.

Installation of coir rolls requires comparatively little grading work either above or below the normal water level. Small, but important, shallow-water planting zones are created, and these plantings provide wildlife habitat that previously may not have existed.

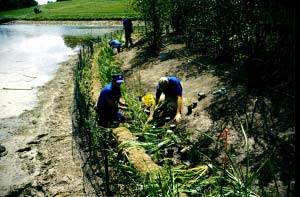

Cross-section view PHOTO: Coir roll planting
Treatment 6: Cross-sectional view Treatment 6: Coir roll planting

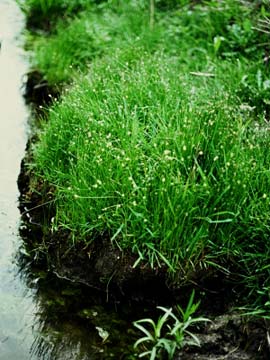

PHOTO: Before restoration

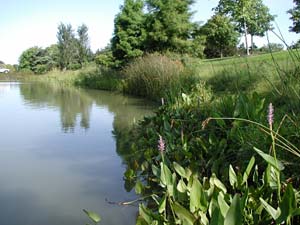

Treatment 6: After shoreline restoration
Treatment 6: Before shoreline restoration
